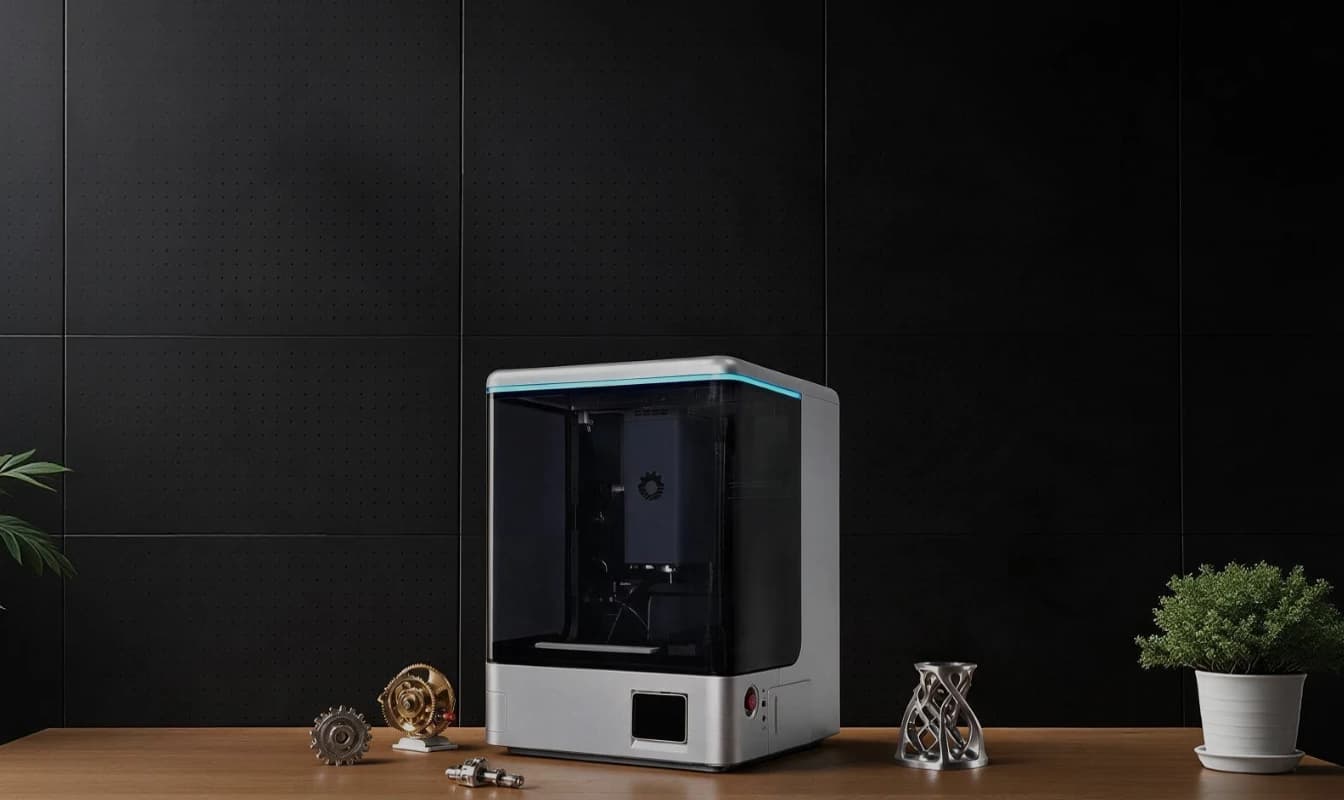

Precision Starts with Stability.
Ultra-high-rigidity construction and a 120 kg build deliver stability for precision machining.

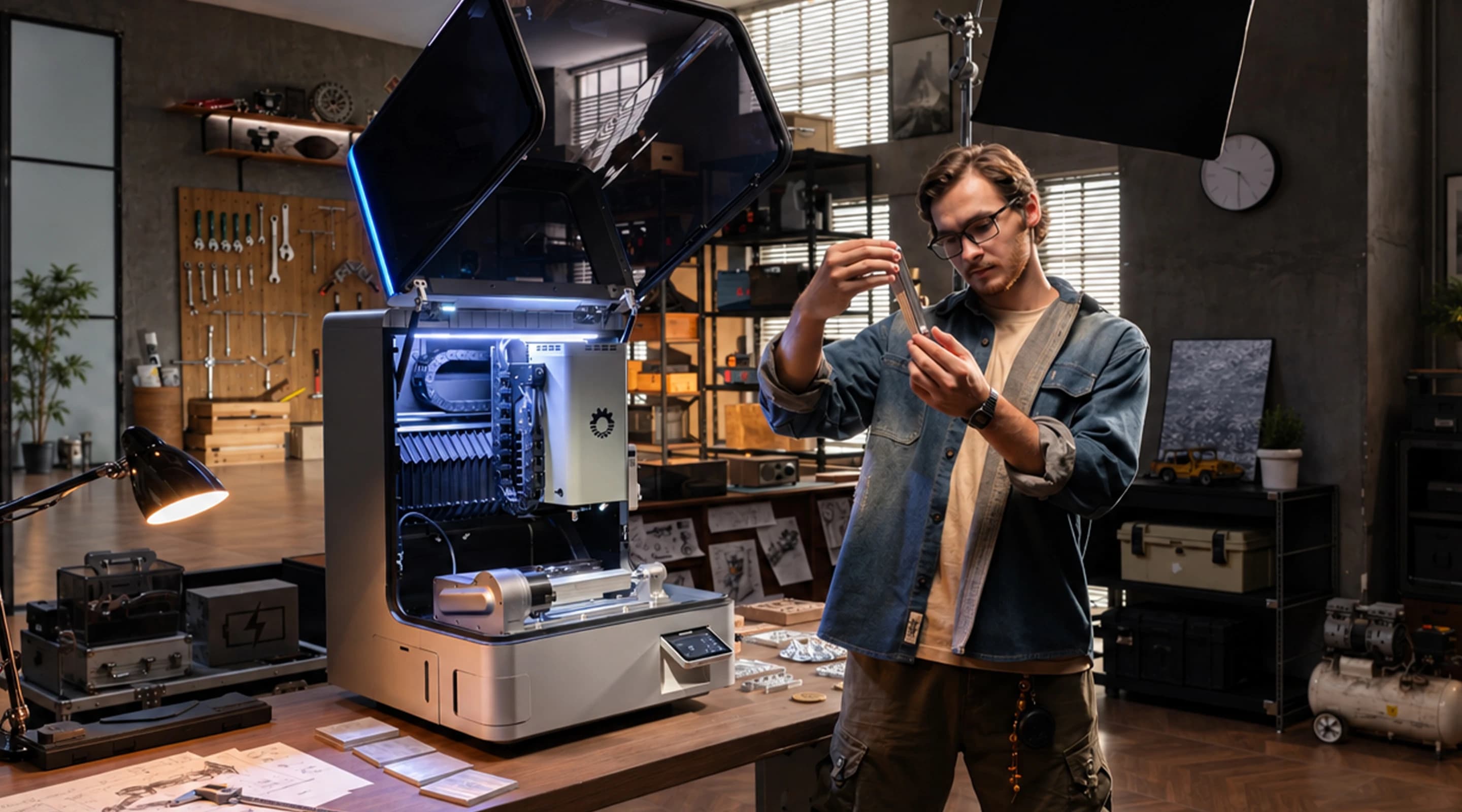

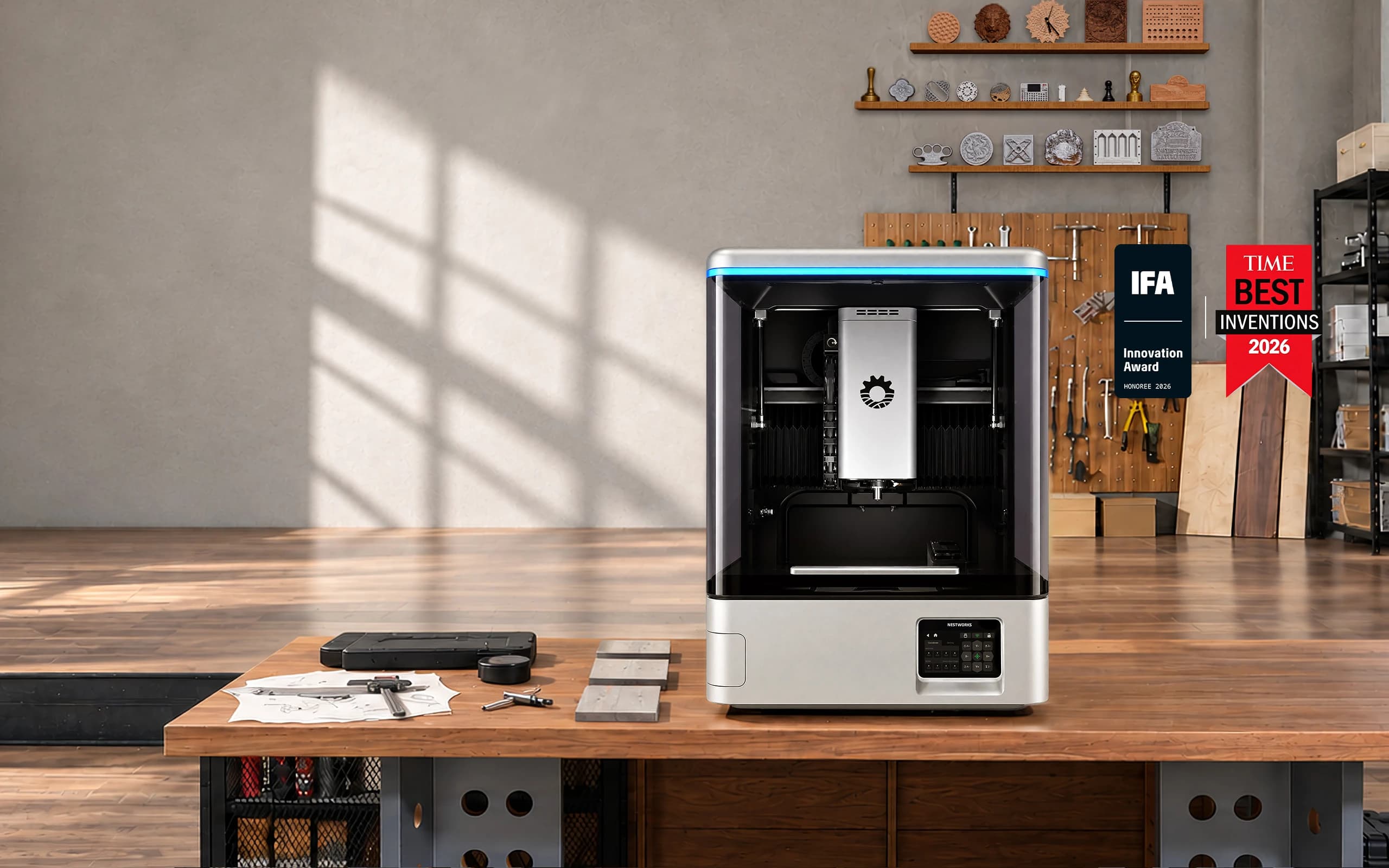

Professional CNC Machining. Now on Your Desktop.
A high-precision, high-efficiency, automated desktop CNC machine for makers.

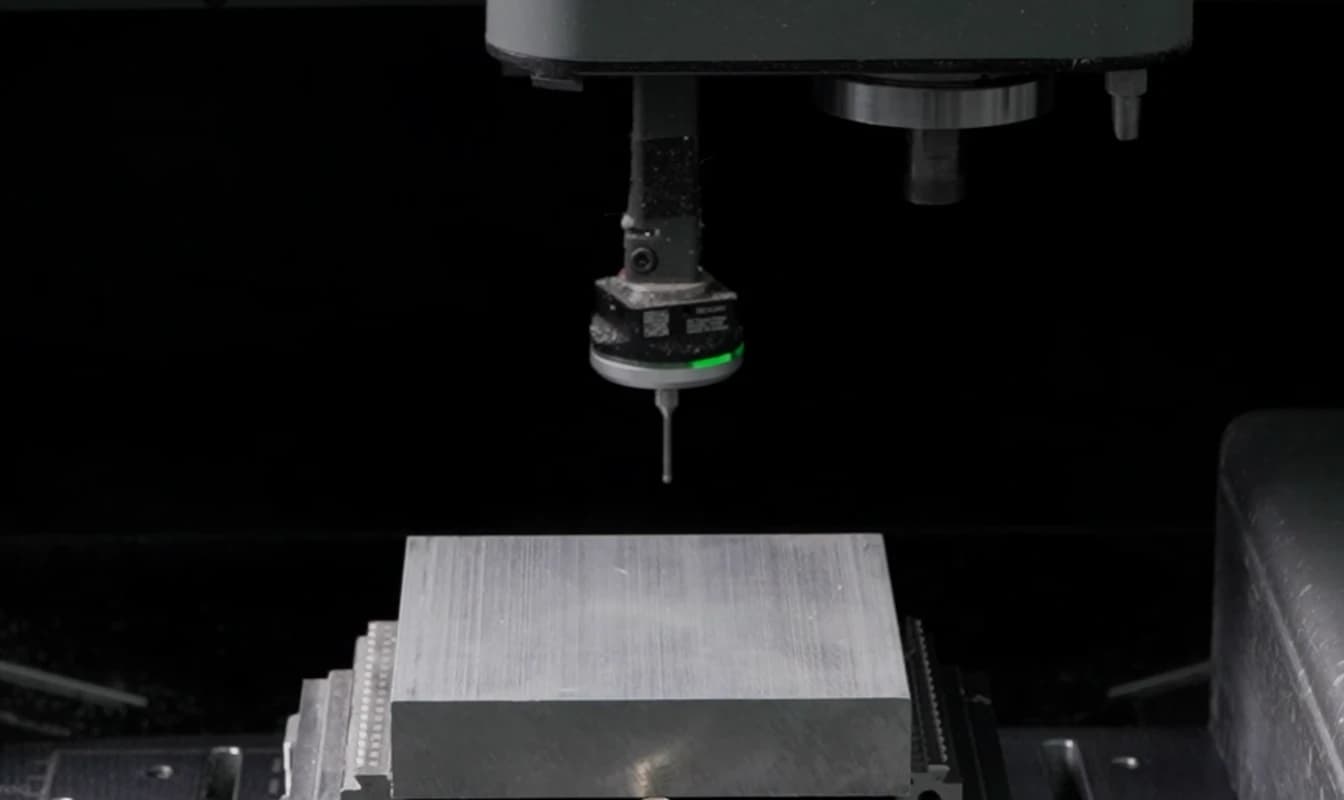

Industrial-Grade Probing
9-point probing detects and automatically compensates for surface variations.

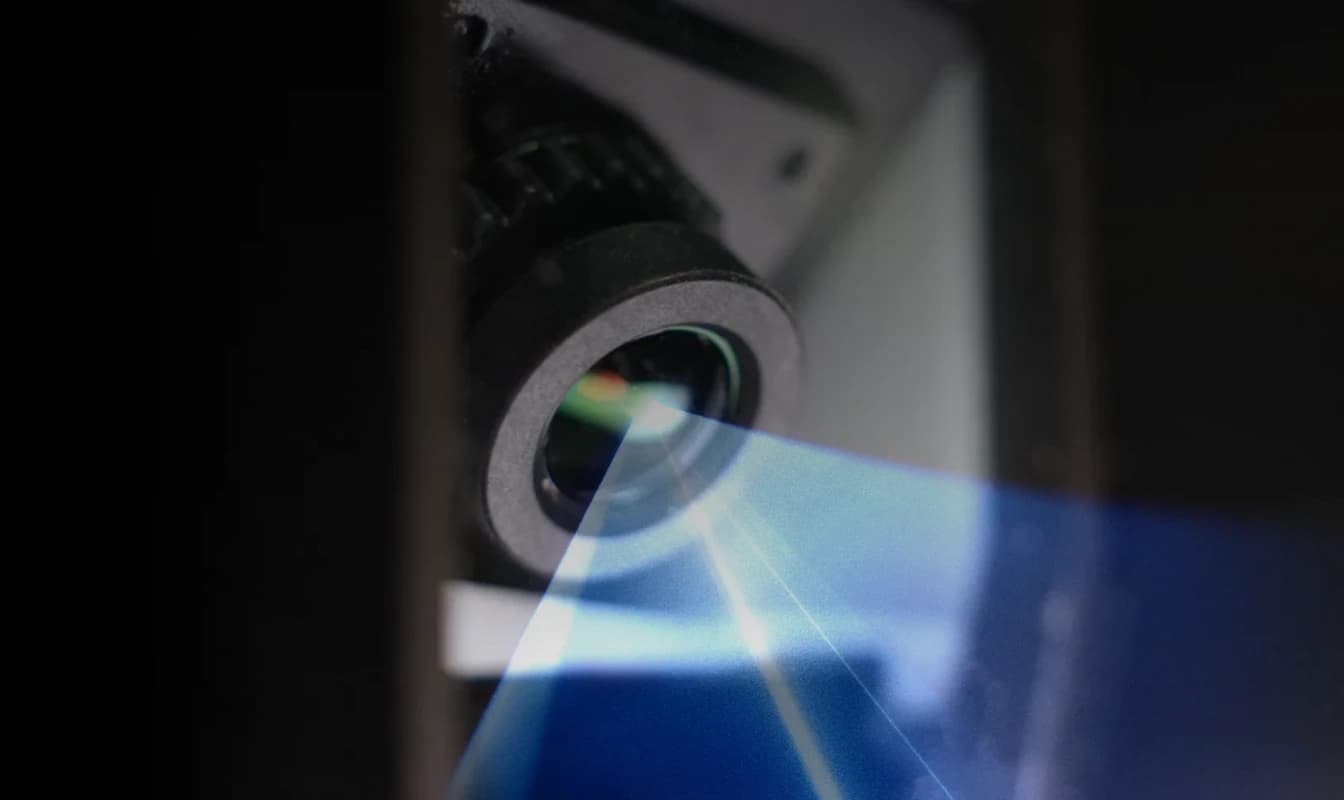

Laser Distance Measurement
0.1 mm resolution and 2.5 kHz frequency enable fast, precise measurement.

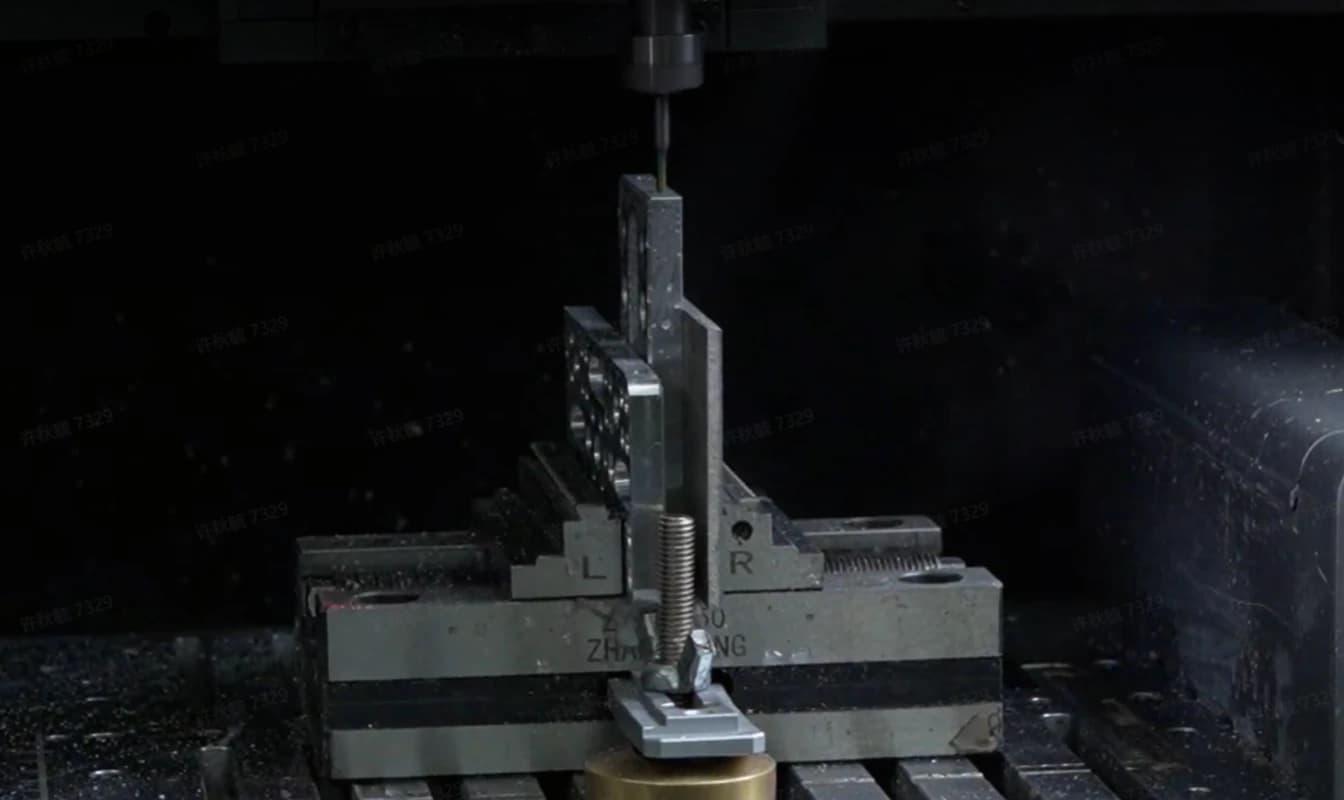

More Z-Axis Travel
132 mm of Z-axis travel for greater machining flexibility.
Five Tools, Zero Tool Chaos

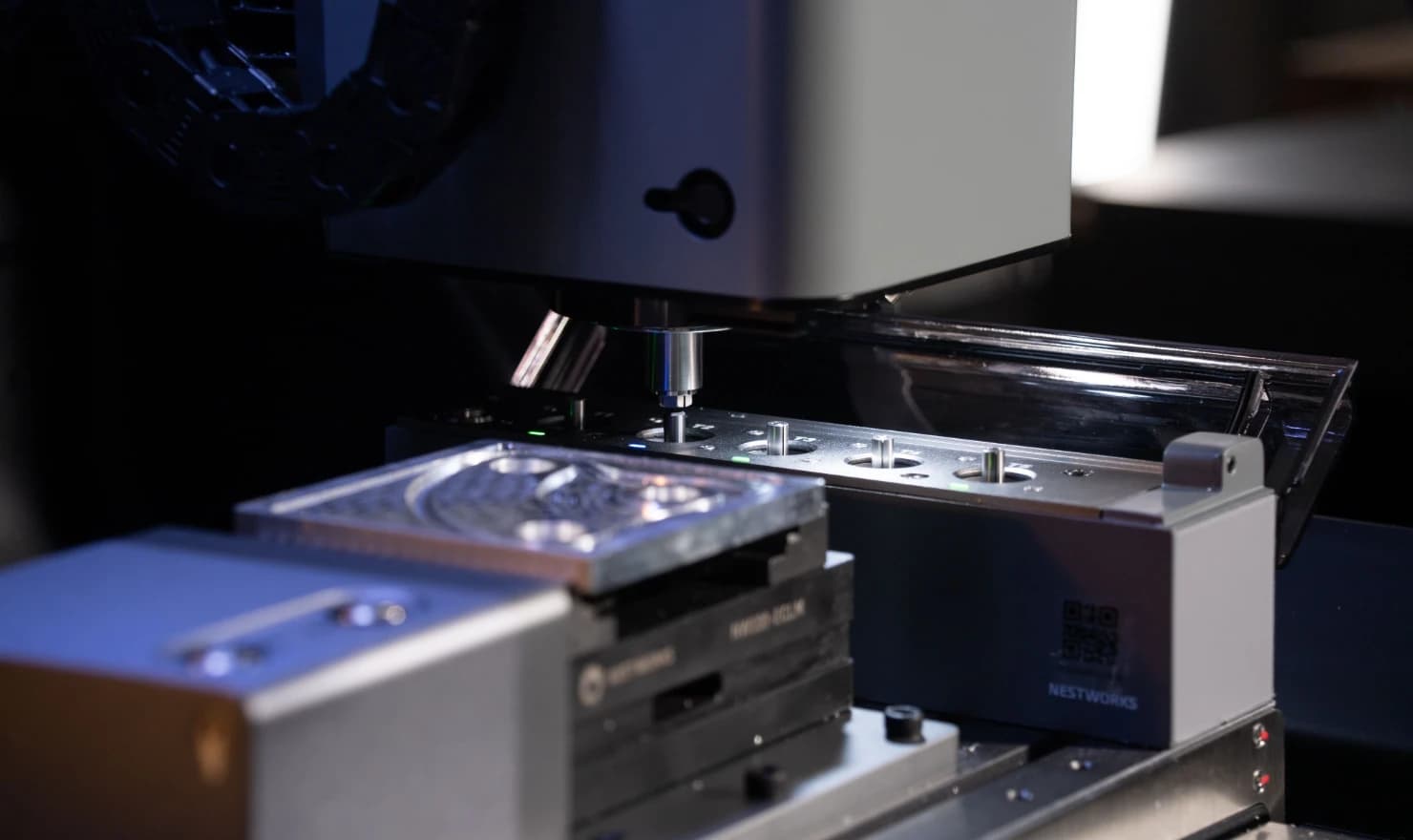

Automatic Tool Changing
With 5-tool automatic tool changer (ATC), switch between tools automatically for hands-free machining.

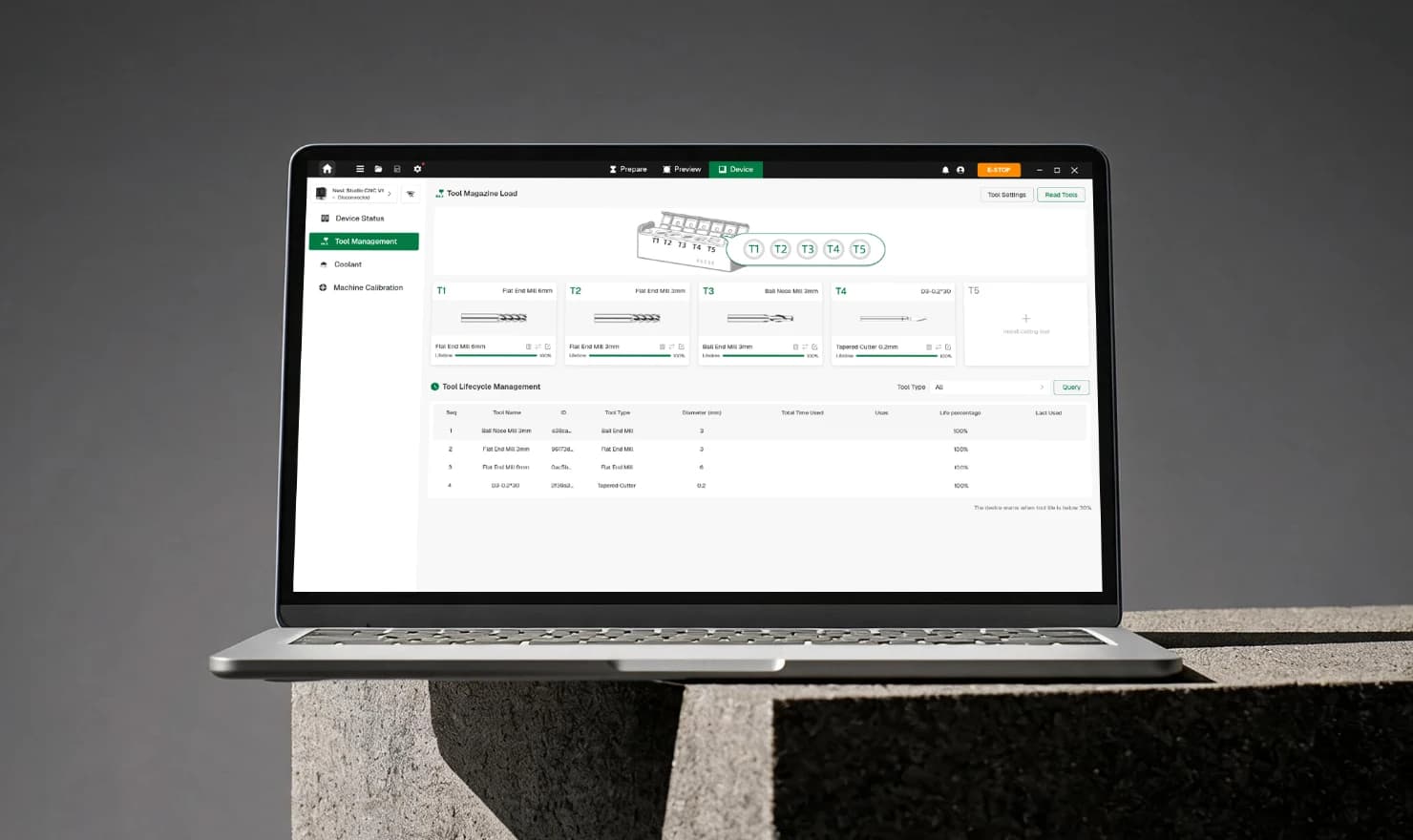

Smart RFID Tool Management
RFID-enabled holders automatically identify tools, track tool life and usage, and sync tool data with CAM software for smart tool selection.
Just Three Steps from Prototype to Production

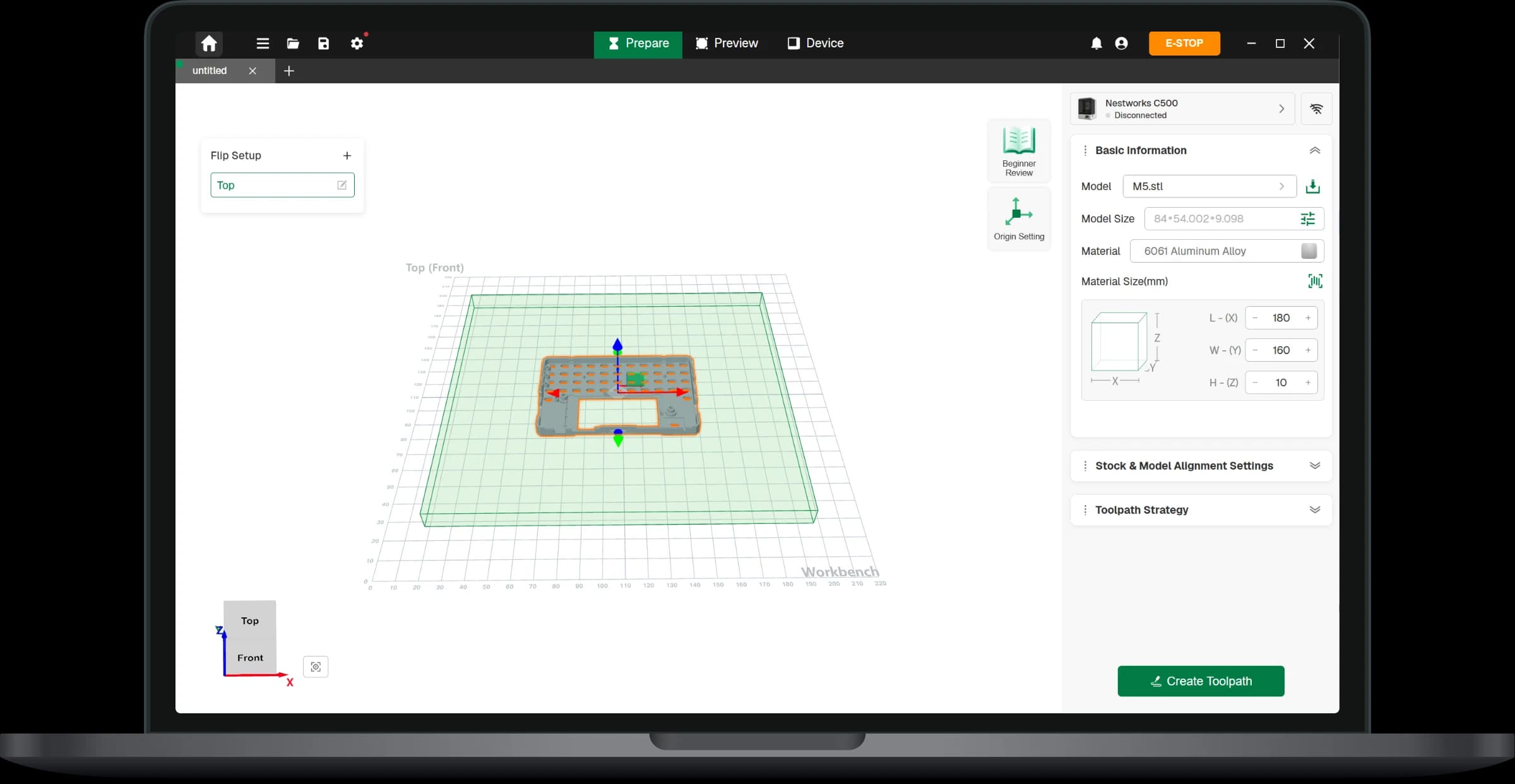

A streamlined CNC workflow powered by Nest Studio makes CNC machining easier.
Explore Nest Studio

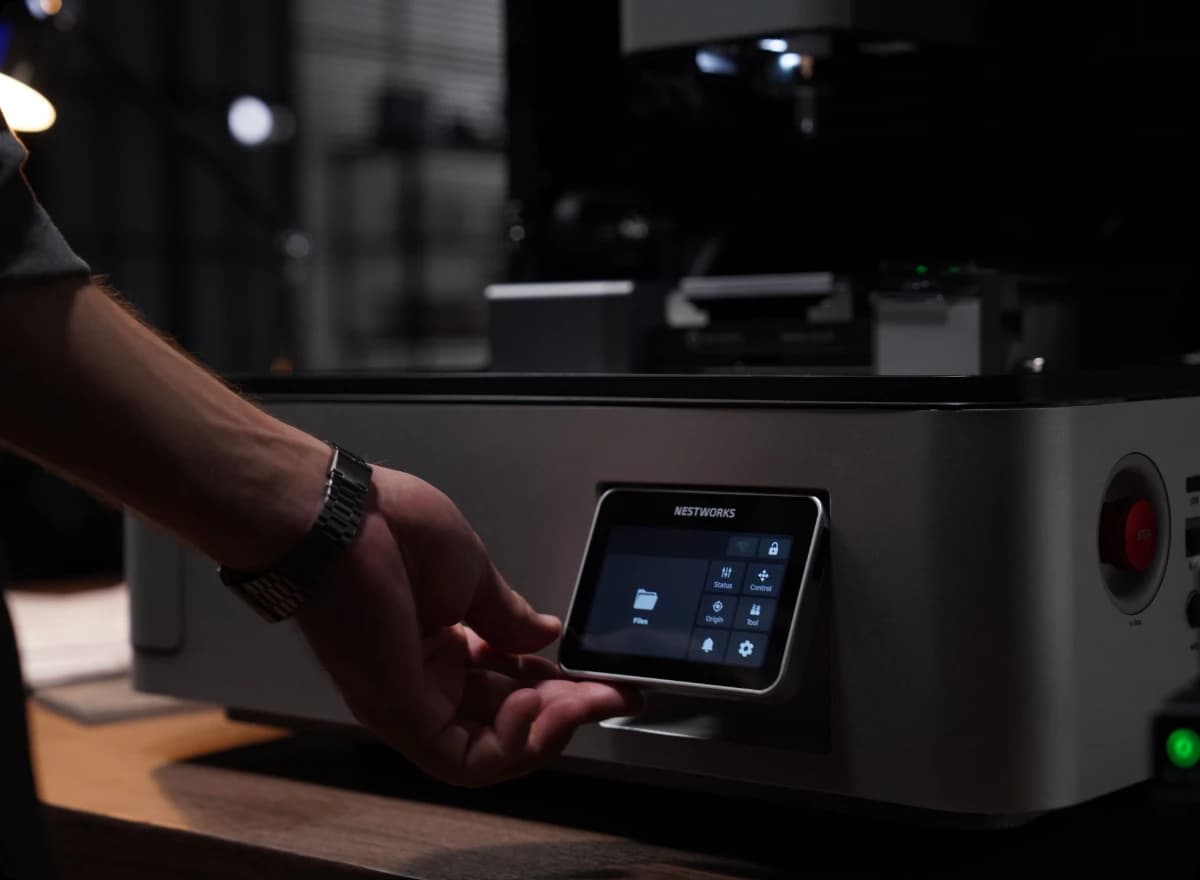

Control at Your Fingertips
Touchscreen InterfaceSwipe and tap through essential machine functions with an intuitive built-in interface.
On-Machine ControlAccess key controls directly from the C500 without relying on a connected computer.
Wi-Fi ConnectivityNest Studio and C500 work together over Wi-Fi for seamless PC and on-machine control.
Precision, Built Into Every Step

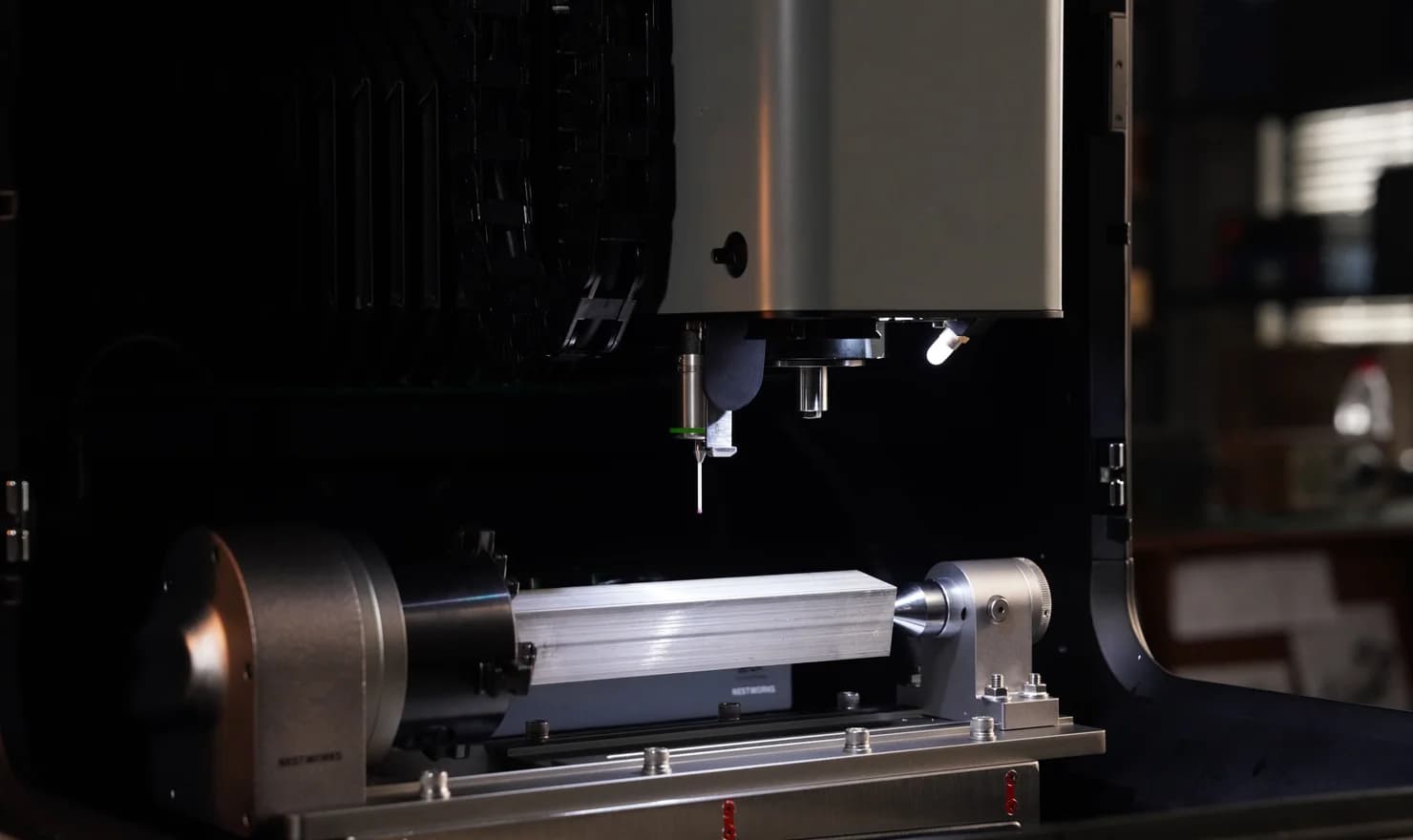

Smart Probing for Automatic Workpiece Centering
Automatically find the workpiece center and set the machining origin for accurate alignment—even after flipping the workpiece.

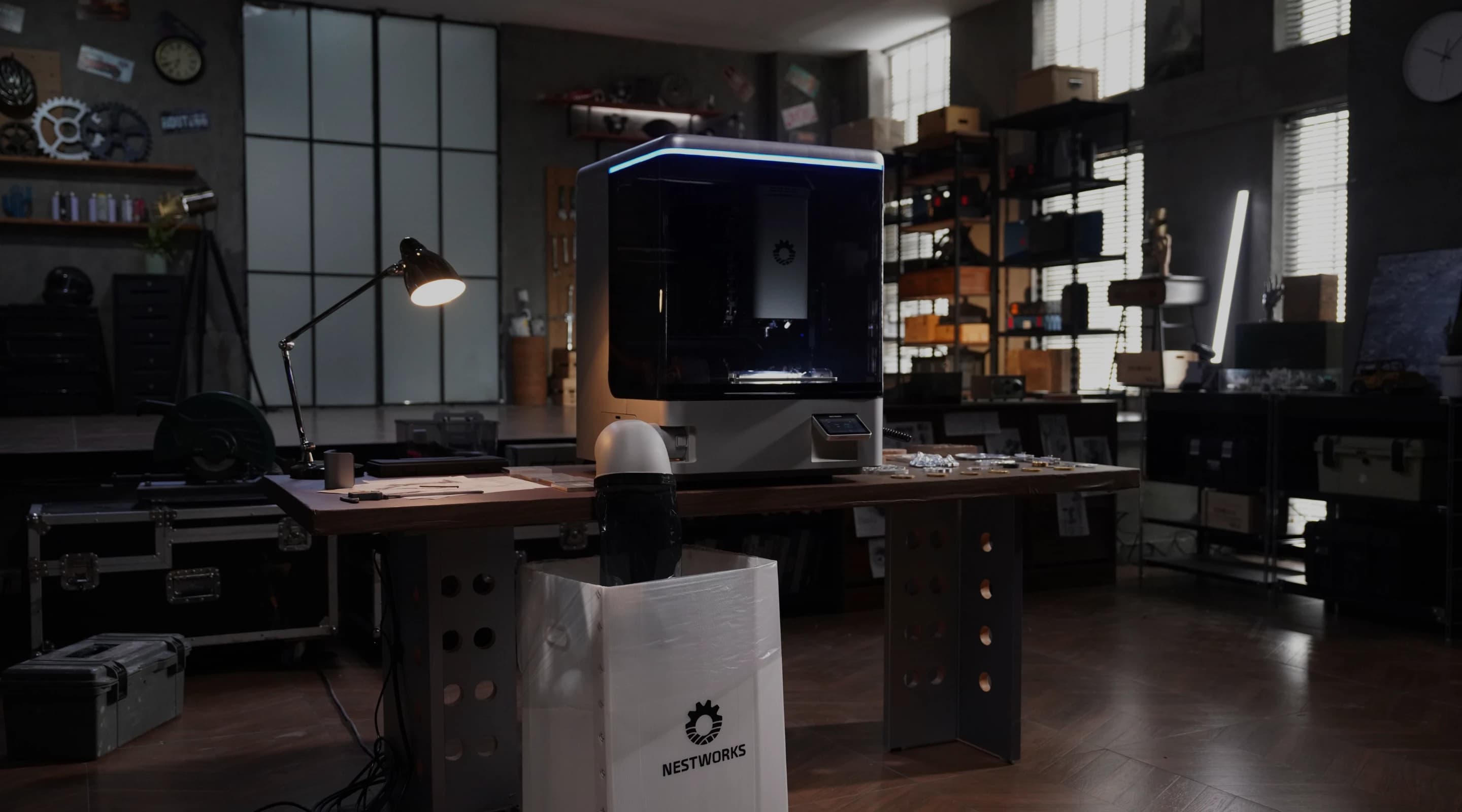

Keep Cutting, Keep Running
No Manual Cleanup, Continuous Machining
Automatic Screw-Driven Chip Evacuation
A screw-driven system automatically moves machining chips to the collection outlet, reducing buildup and the need for manual cleanup.
Dual-Sided Chip Channels
Dual-sided channels guide machining chips toward the evacuation system, helping keep the machining area clear during operation.

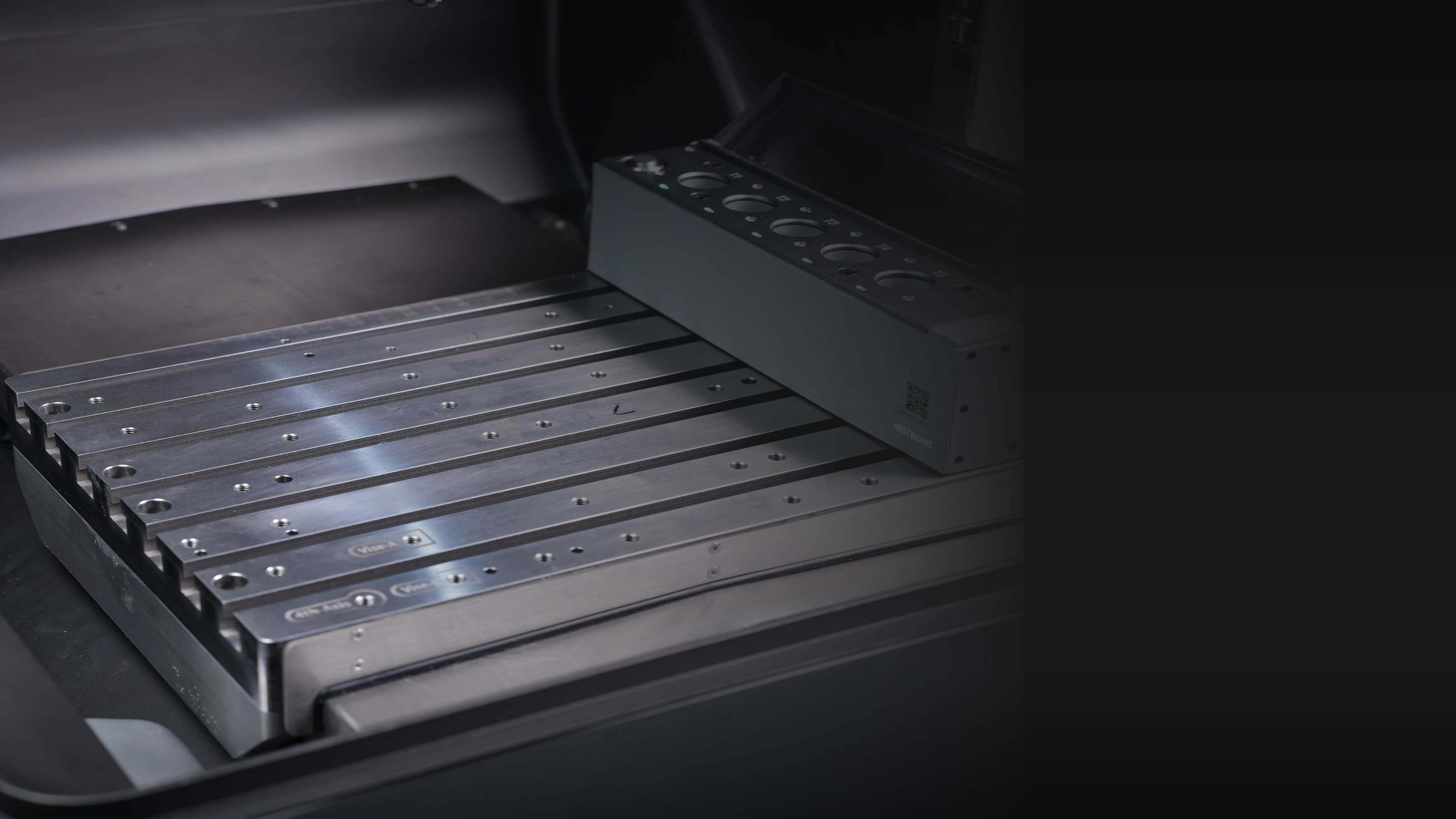

IP54 Dust & Water Protection
Built to help protect the machine from dust and water splashes in demanding machining environments.
Bringing MQL to Desktop CNC
Coolant is atomized into a fine mist under high pressure and precisely delivered to the cutting area for effective cooling and lubrication, while clearing chips from the worktable into the dual-sided augers.

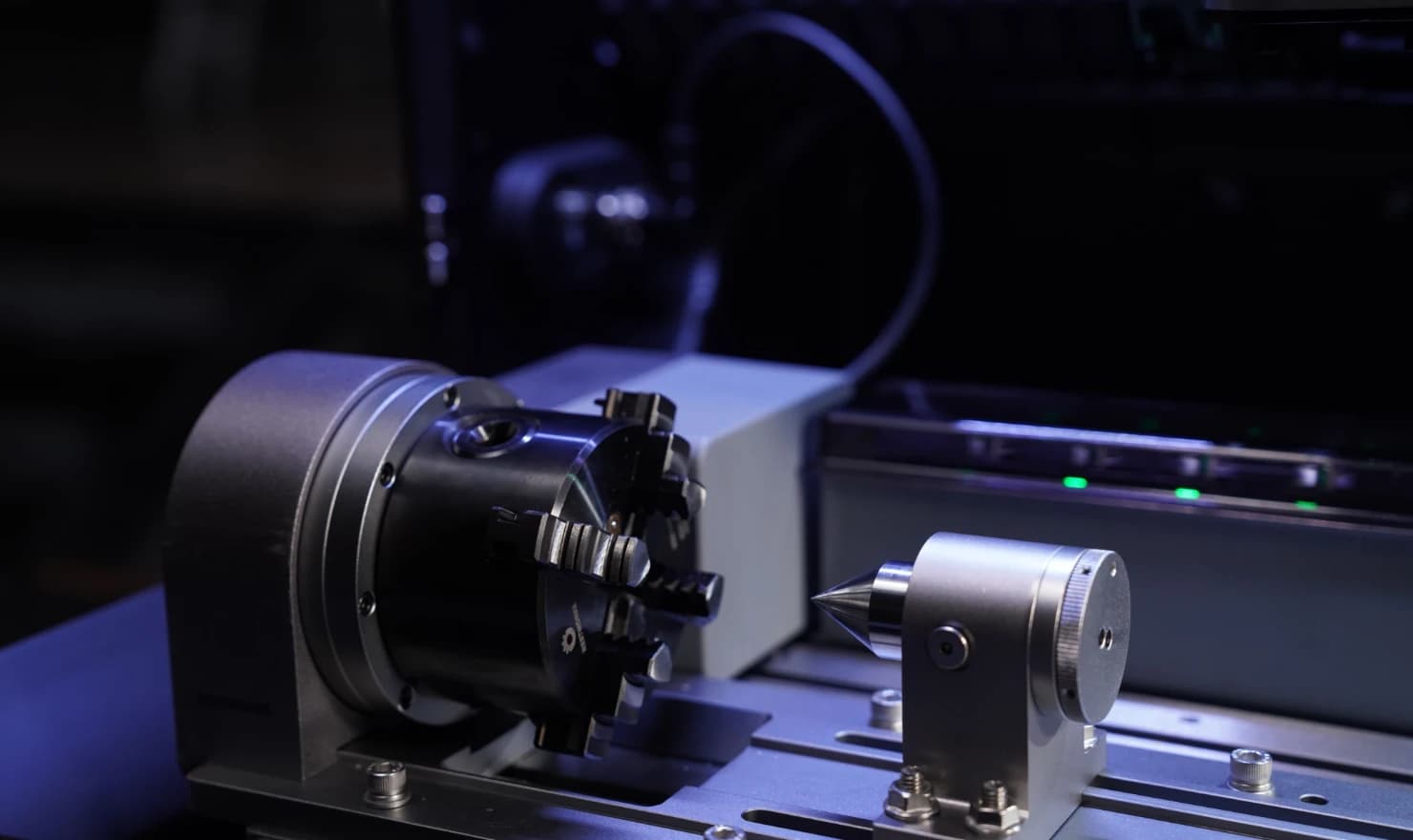

Unlock 4-Axis Machining
Add the 4th-axis module to switch between 3-axis and 4-axis machining. Machine multi-sided and cylindrical parts with fewer setups and less repositioning.

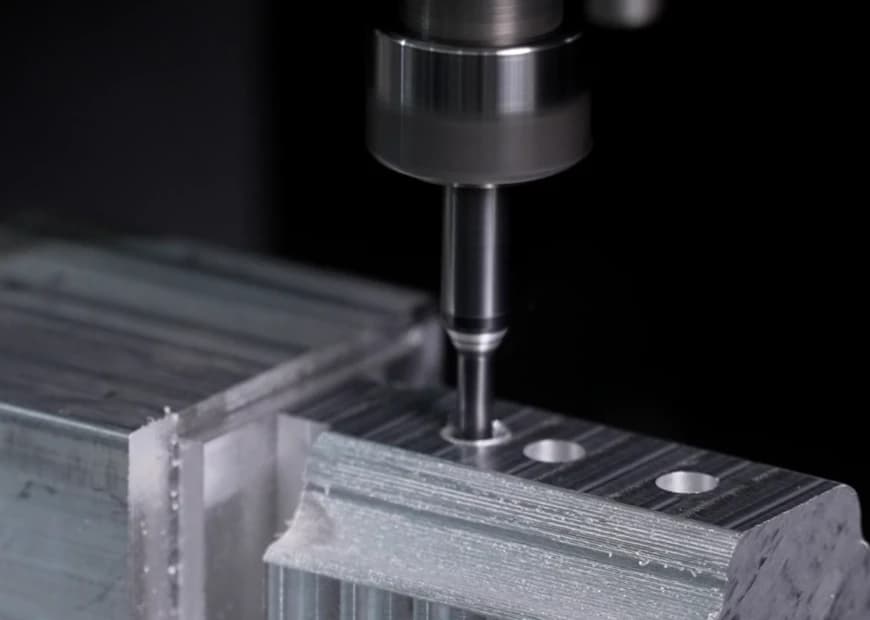

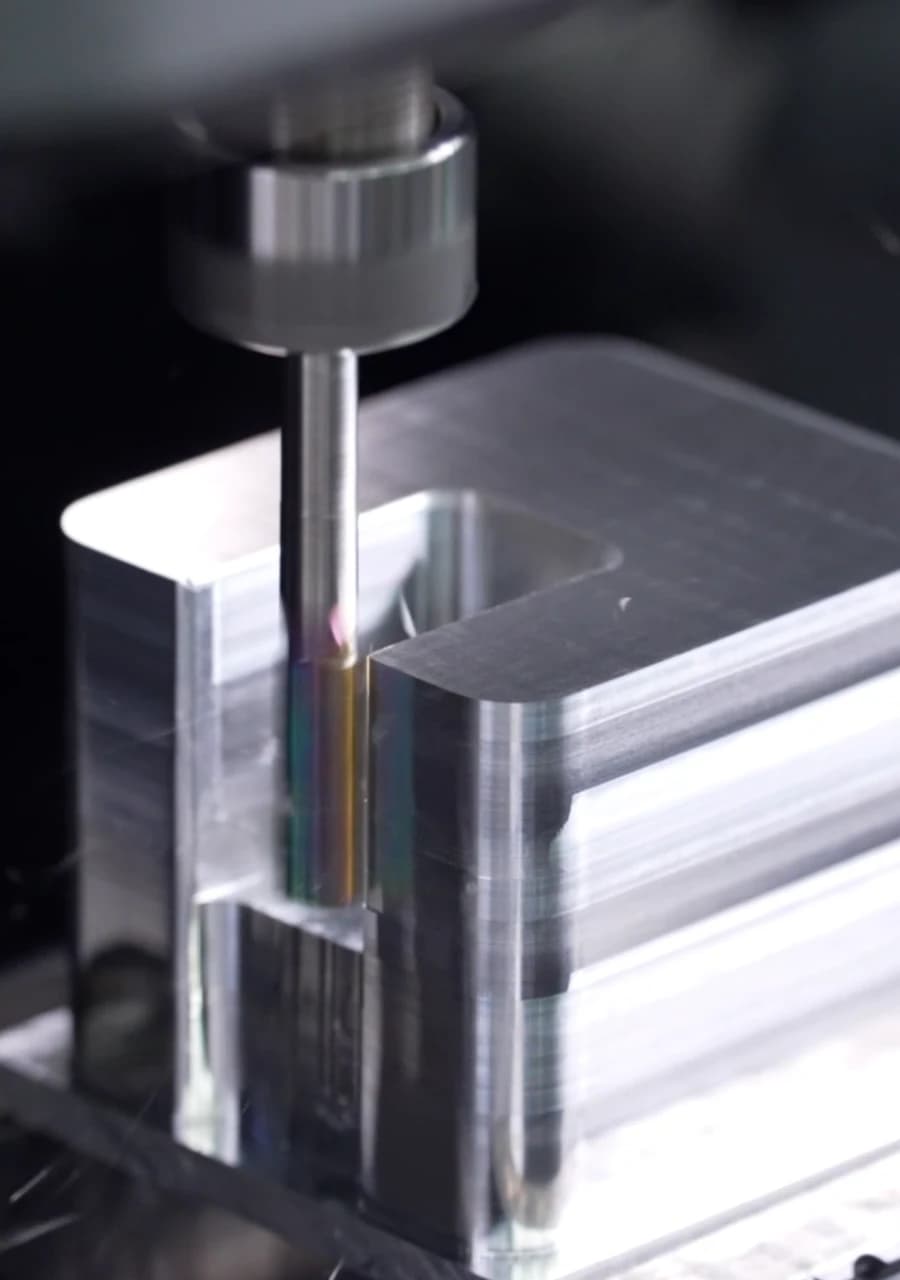

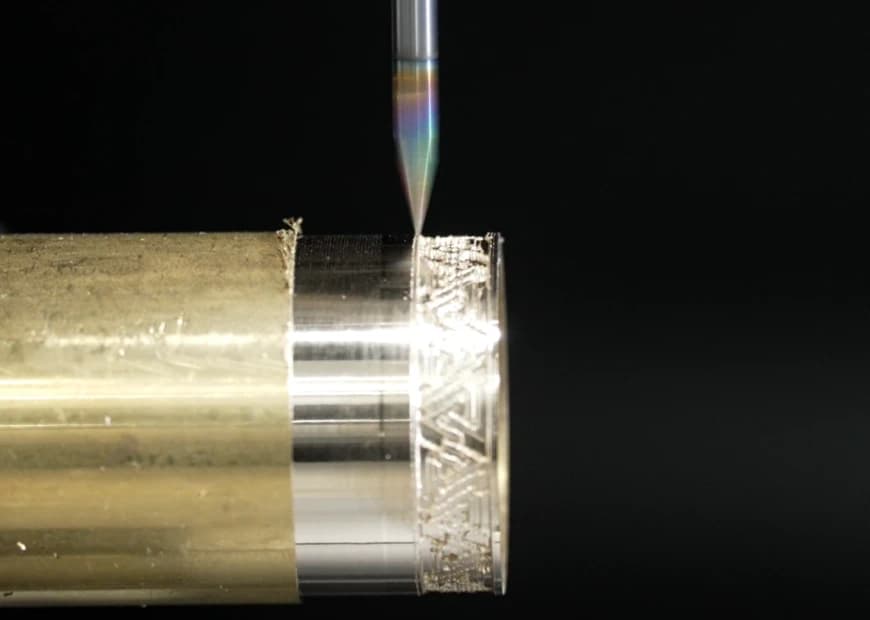

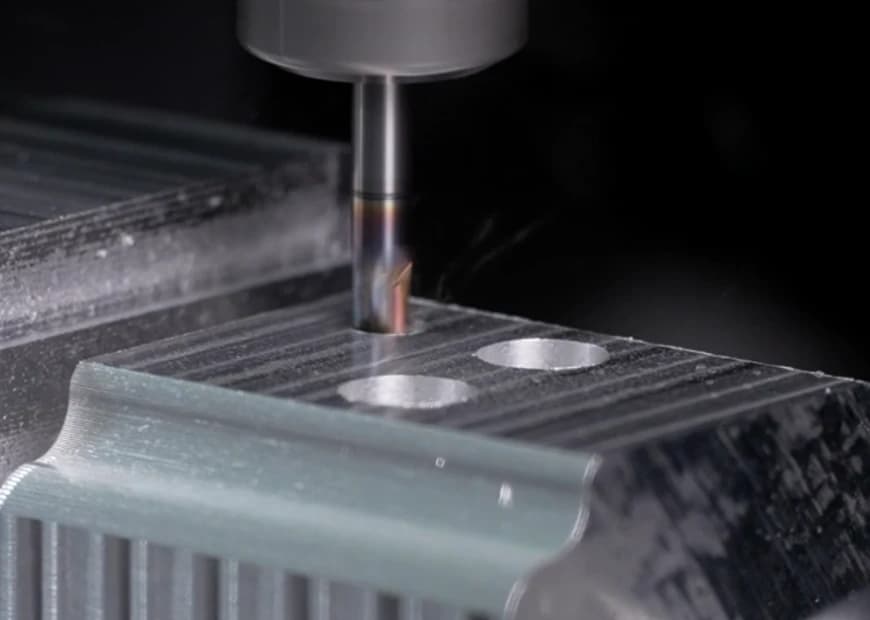

Versatile CNC Machining Capabilities
One desktop CNC machine handles a wide range of machining operations for prototyping, custom parts, and small-batch production.
Tackle Every Material with Ease
From soft materials to demanding metals, NestWorks C500 delivers versatile CNC machining capabilities across a wide range of materials. It gives makers, designers, and professionals the freedom to explore more ambitious projects with one powerful desktop CNC machine.
Titanium Alloy
Stainless Steel
Carbon Steel
Tool Steel
Aluminum
Bronze
Brass
Mild Steel
Acrylic
ABS
Hardwood
SoftwoodThe Base Where Great Works are Born
Discover builds, discuss machining, share tips, and connect with makers around the world.

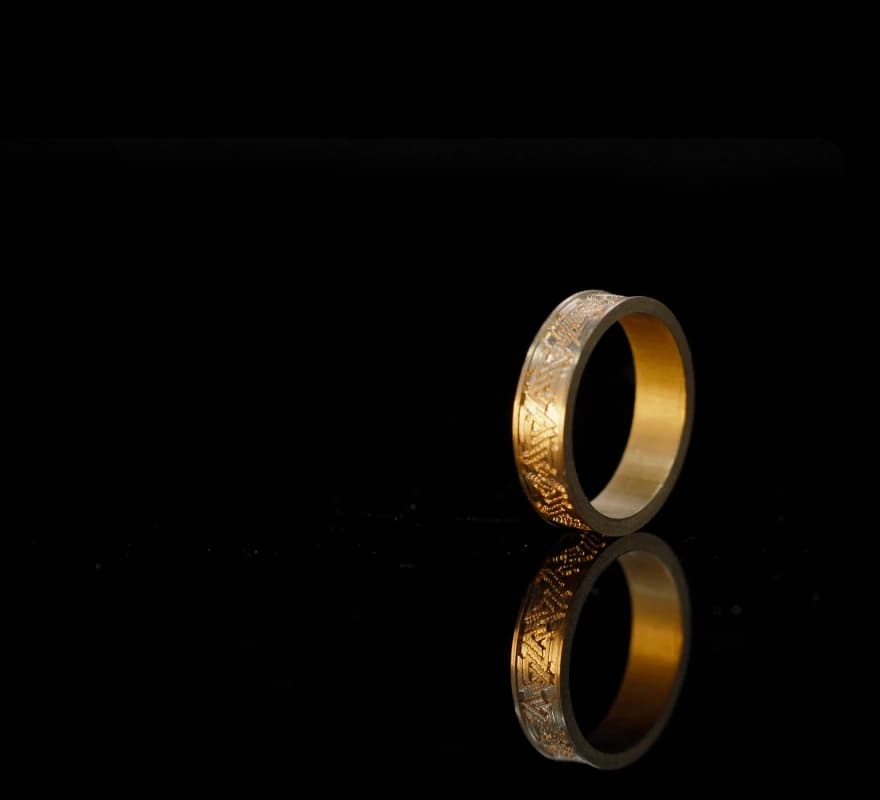

More than accessories—they're your style statement.

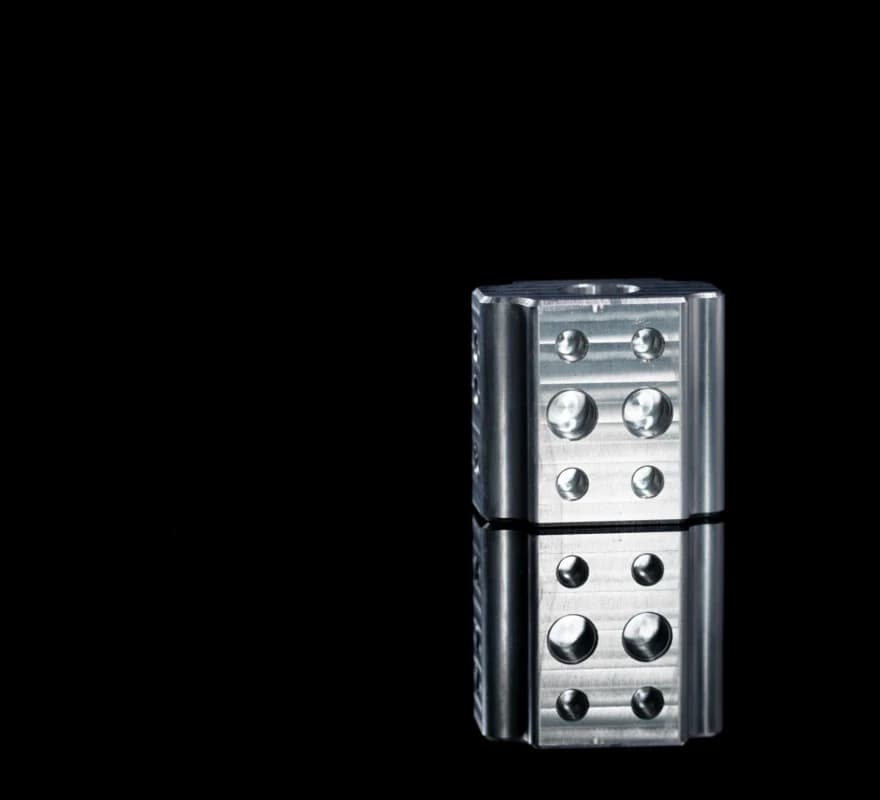

Personal gear, everyday essentials, and trend-forward designs.

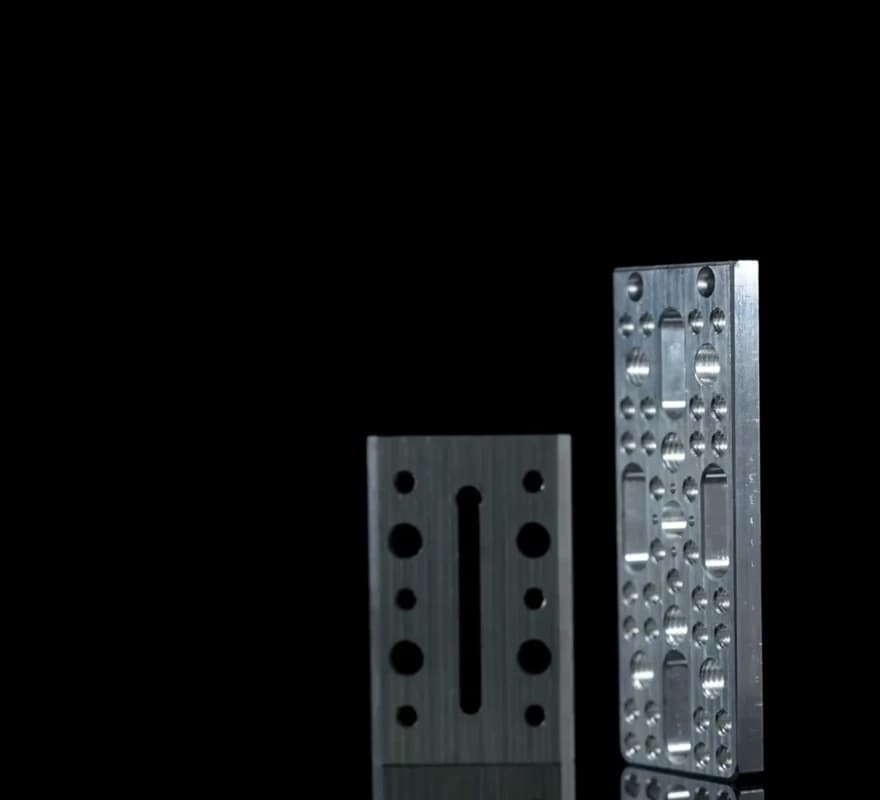

Bring tech to life with custom designs, smart setups, and creative builds.

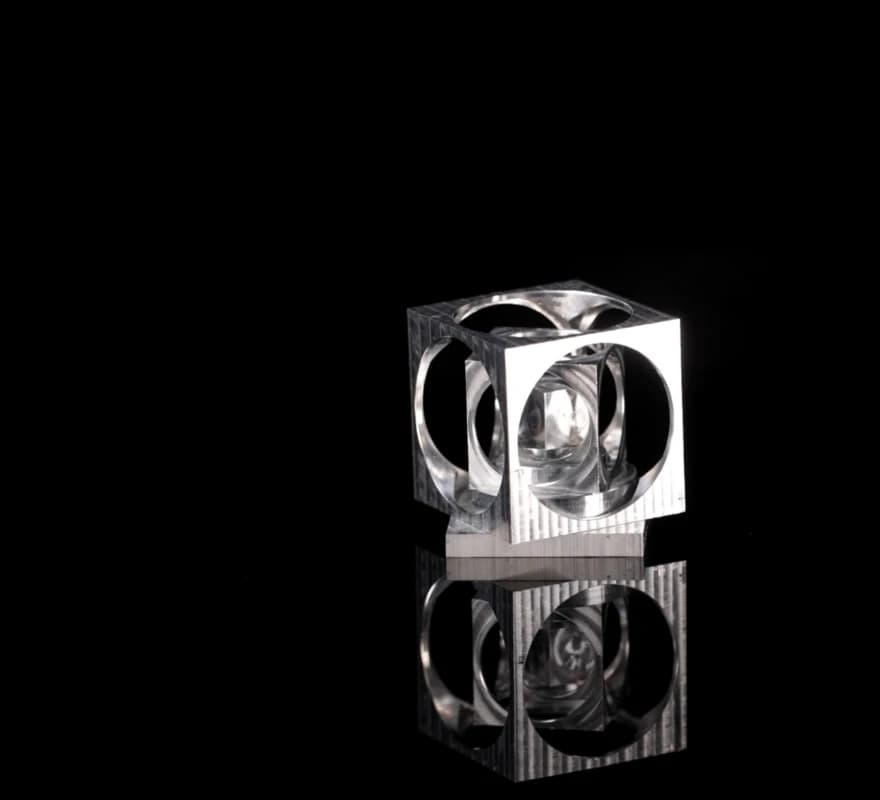

Turn ideas into art, collectibles, and pieces worth keeping.

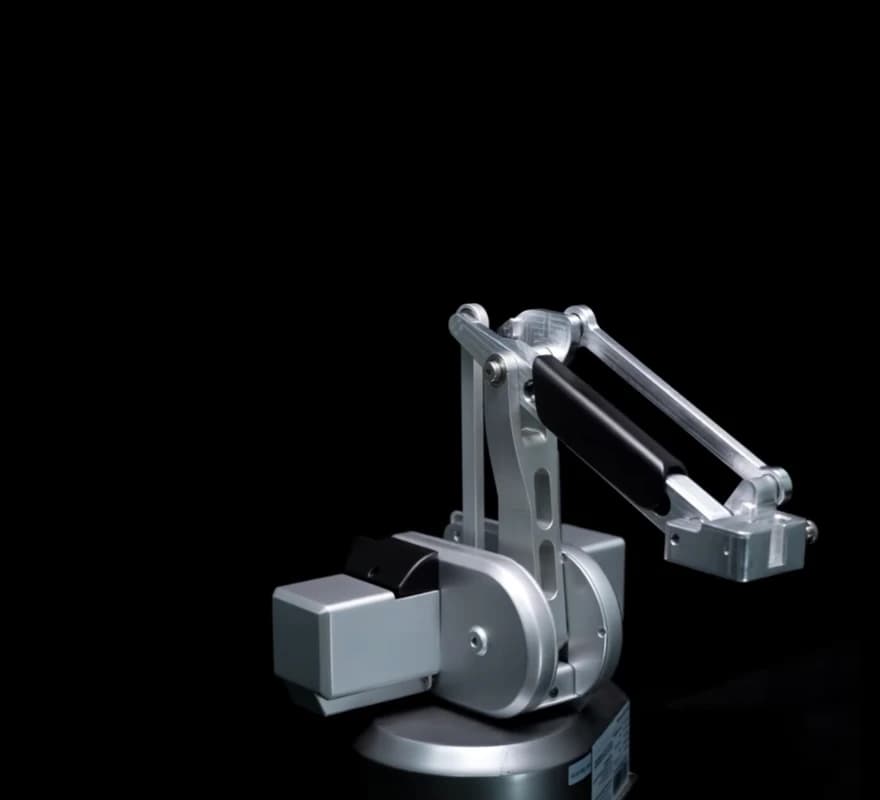

Discover custom mods, upgrades, and parts made to fit.
Designed For The Way You Work
The C500 makes CNC easier to start, easier to control, and easier to bring in-house.
Robotics & R&D
Rapidly machine high-precision metal parts with complex shapes for faster iteration.

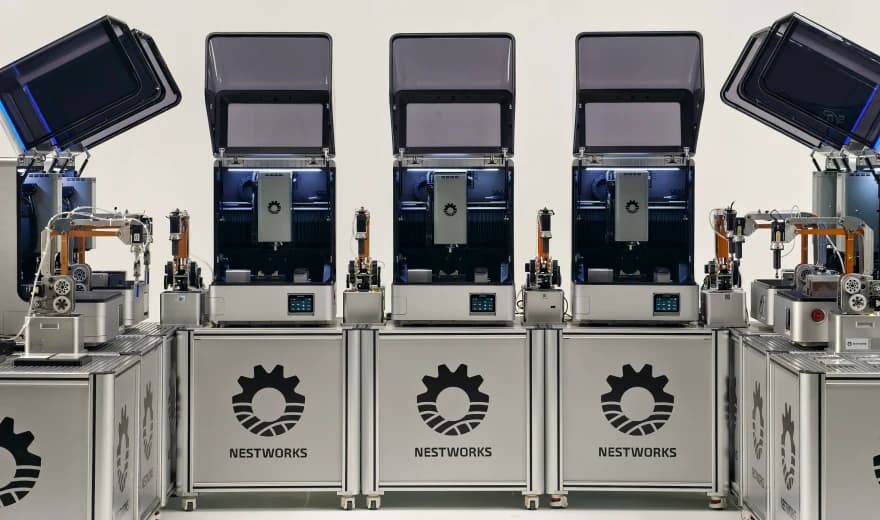

In-House Manufacturing
Machine custom parts with precision for cost-effective small-batch production.
Manufacturing Services Provider
Rapidly produce custom parts across various materials to meet diverse customer requirements and tight deadlines.
Specifications
Overall Dimensions
550 × 615 × 745 mm (21.65 × 24.21 × 29.33 in)
Working Area — without ATC
240 × 210 mm (9.45 × 8.27 in)
Working Area — with X-ATC
207 × 210 mm (8.15 × 8.27 in)
Working Area — with Y-ATC
240 × 160 mm (9.45 × 6.30 in)
Spindle Z-Axis Travel
28–160 mm (1.10–6.30 in)
Power Supply
100–230 VAC @ 50/60 Hz, 2000 W output
Net Weight
120 kg / 250 lbs (approx.)
Spindle
800 W wide-voltage spindle (110–220 V), 9,000–18,000 RPM, radial runout ≤ 0.01 mm
Spindle Cooling
Air cooling with real-time temperature monitoring
3D Probe
Accuracy < 0.01 mm, feed rate: 50–200 mm/min
Probing Camera
5 MP, 110° distortion-free lens, autofocus
Laser Sensor
Resolution 0.1 mm, linearity ±0.2% F.S., response time 400 μs, frequency 2.5 kHz
Max Tool Capacity
5 tools. Drawbar spindle compatible with 3 mm, 6 mm, 1/4 in, and 1/8 in shank tools. Adaptive collets and tool sleeves support additional shank sizes, including 3/16 in and 4 mm diameter tools.
Tool Setter
Accuracy 0.001 mm, probing speed 60–200 mm/min, sensing surface diameter Φ10 mm
Drive System
5 mm-lead ball screw; positioning repeatability ±0.01 mm; 50 N preload; dual linear rails; zero backlash; dynamic load ≥5 kN
Motor
NEMA 23 closed-loop stepper motor (2.2 N·m torque), 1,600 subdivision, step loss rate ≤ 0.1%
Max Travel Speed
5,000 mm/min
Supported Materials
- Wood: hardwood, softwood, MDF, plywood, etc.
- Plastics: foam, PVC, ABS, acrylic, PC, HDPE, etc.
- Composites: carbon fiber, FR4, etc.
- Metals: steel, aluminum, brass, copper, bronze, etc.
- Laser engraving: wood, plastic, fabric, leather, cardboard, etc.
FAQ
C500 supports a wide range of materials, including aluminum, brass, copper, plastics, acrylic, wood, and other common CNC materials. It is designed for makers, engineers, and small businesses to create prototypes, custom parts, and functional components.
C500 works with NestStudio, our CNC workflow software for project preparation, toolpath generation, and machining management. It also supports standard G-code and is compatible with popular CAD/CAM software such as Fusion 360, Mastercam, SolidCAM, Aspire, and Carveco.
Milling (with ATC): 157 × 210 mm or 240 × 95 mm (two layout options available)
Milling (without ATC): 240 × 210 mm
The 4th axis supports a maximum clamping diameter of 95mm, with a corresponding X-axis working length of 175mm (the tool magazine is positioned along the Y-axis).
C500 supports max spindle power 800W and max spindle speed 18,000 RPM.
Positioning accuracy
± 0.02 mm
Repeatability positioning accuracy
± 0.008 mm
Automatic tool setting accuracy
± 0.005 mm
C500 supports tool shanks ranging from 1/8" (3.175 mm) to 1/4" (6.35 mm).
